Analysis of pair 4tsyD_3zwgN

4tsyD vs 3zwgN

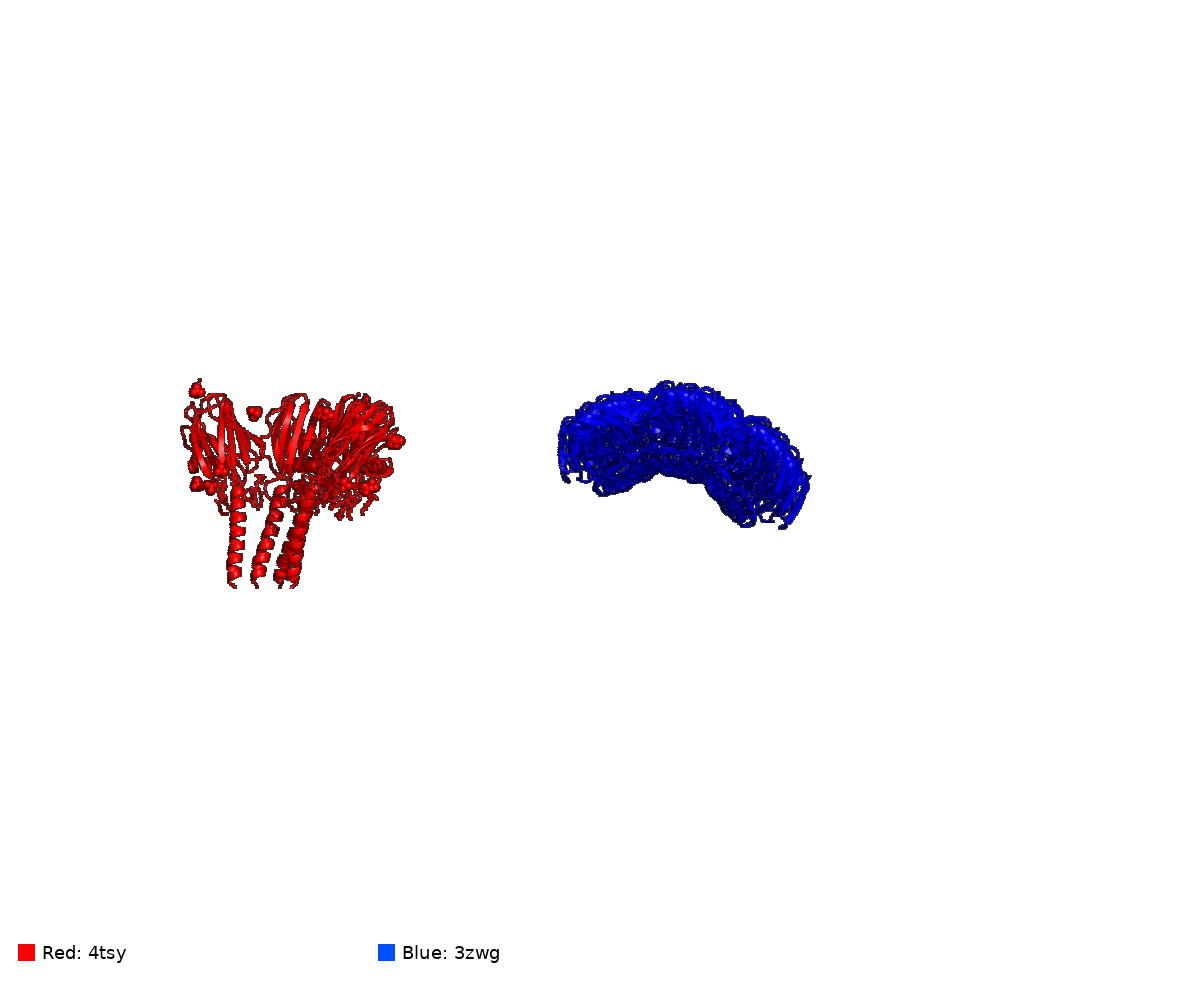

Figure 1: Two structures (Fold1 & Fold2)

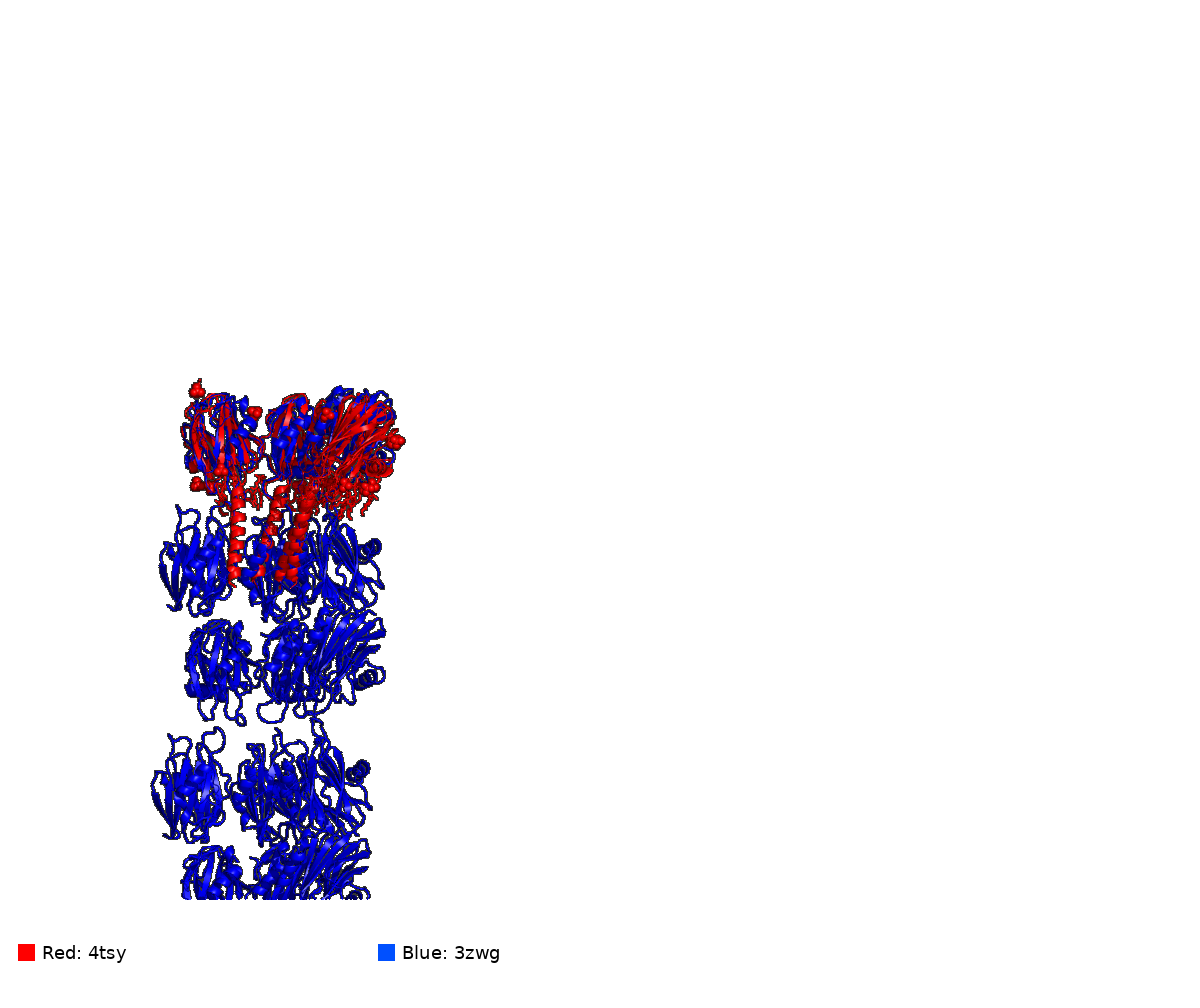

Figure 2: Two structures aligned

Missing: Fold1 vs best AF2
Missing: Fold2 vs best AF2
Missing: Fold1 vs best AF3
Missing: Fold2 vs best AF3
Missing: Fold1 vs best ESM2
Missing: Fold2 vs best ESM2
Missing: Fold1 vs best ESM3
Missing: Fold2 vs best ESM3
[missing] 4tsyD vs. 3zwgN (unaligned) — interactive
[missing] 4tsyD vs. 3zwgN (aligned) — interactive

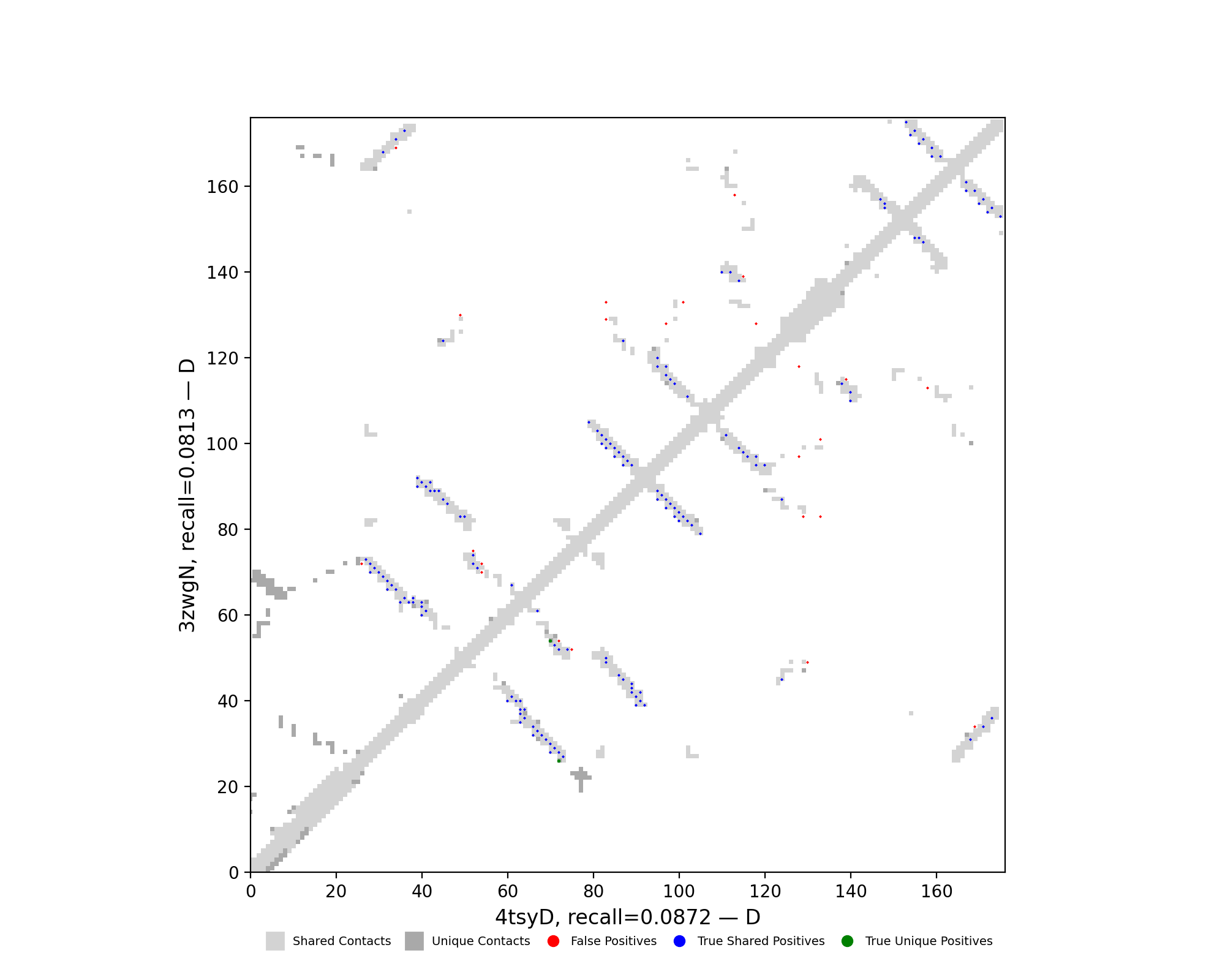

Figure 3: Deep-MSA contact map panel

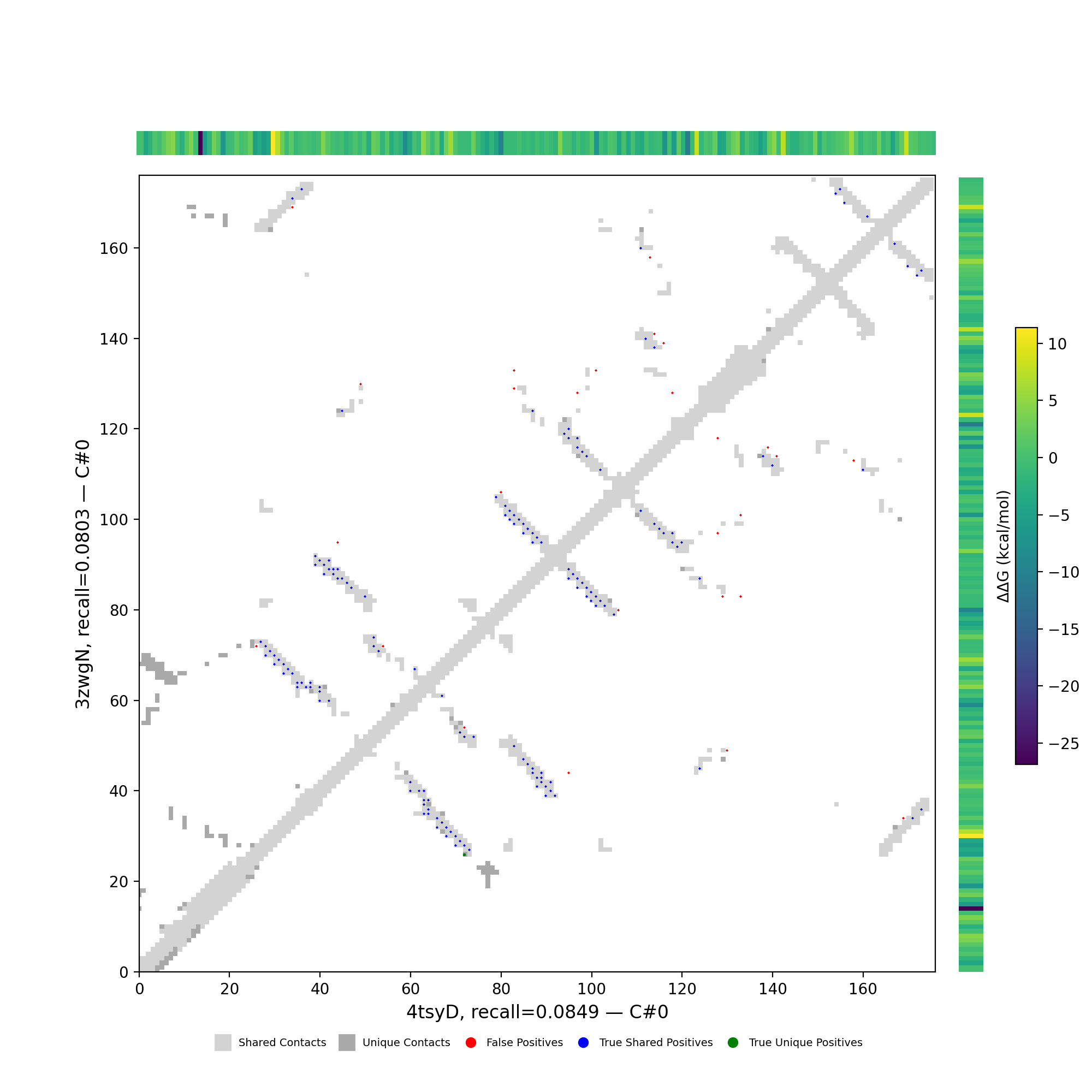

Figure 4: Best clusters contact map panel

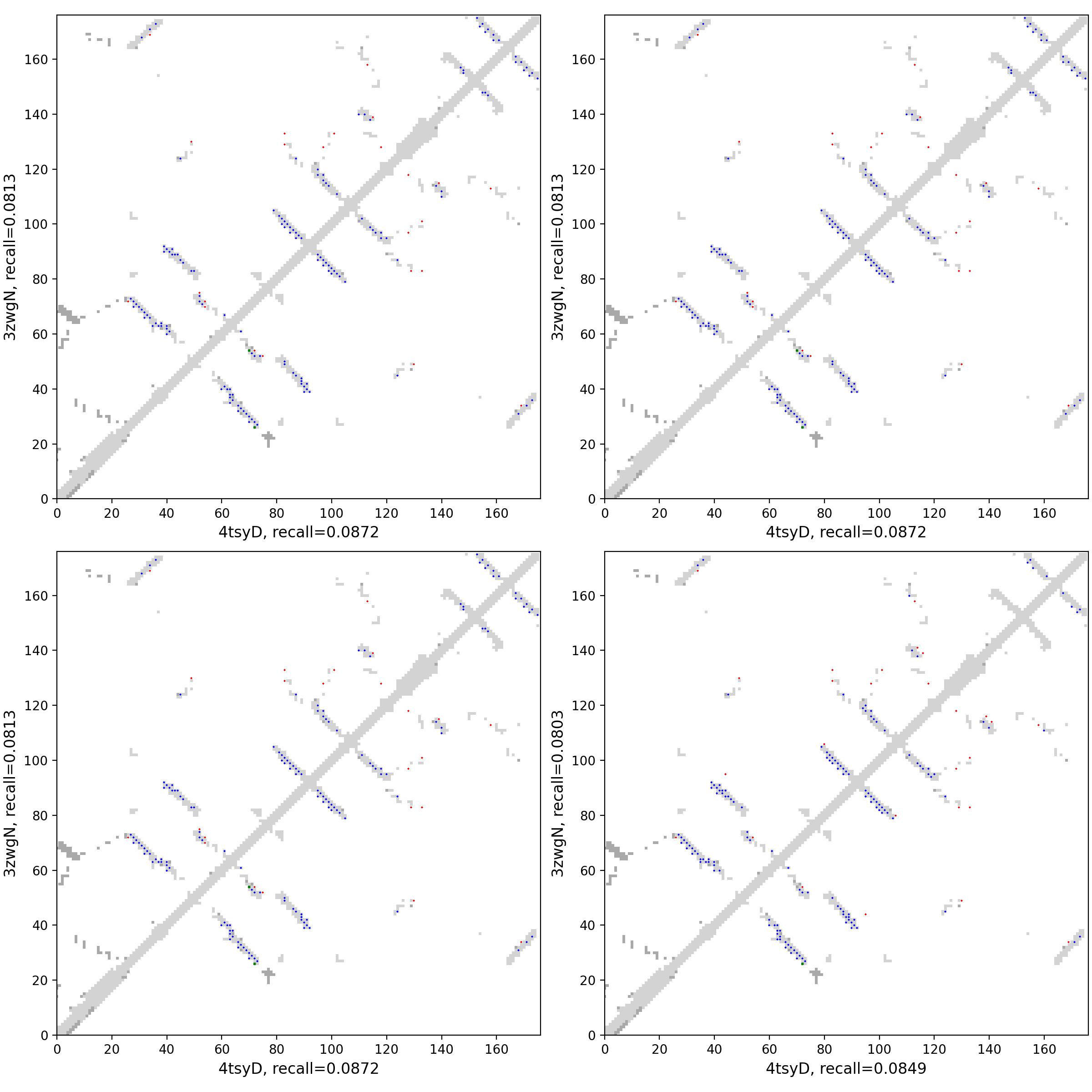

Figure 5: All clusters contact-map mosaic (small multiples).

Per-cluster contact maps

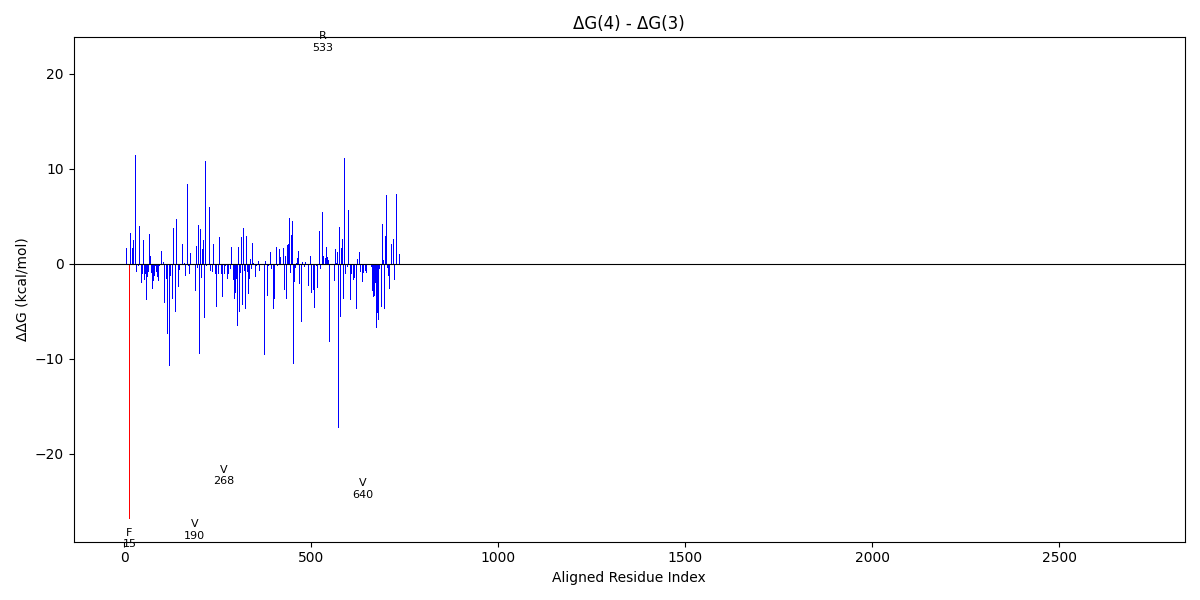

Figure 6: Aligned per-residue ΔΔG (seq alignment overlay).

Figure 7: Phylogenetic tree with per-cluster heatmap.

Cluster metrics table

clusternneffAF2_TM1AF2_TM2AF3_TM1AF3_TM2RE-MSAT-COMRE-MSAT1RE-MSAT2ESM_SEQIDSESM_TM1_LISTESM_TM2_LIST
Deep--0.850.980.850.990.430.420.38---
000--0.850.990.850.990.420.410.37001; 001; 009; 009; 007; 007; 002; 002; 003; 0030.85; 0.85; 0.80; 0.80; 0.77; 0.77; 0.75; 0.74; 0.73; 0.730.98; 0.98; 0.85; 0.85; 0.84; 0.84; 0.82; 0.82; 0.71; 0.71
