Analysis of pair 4qhhA_4qhfA

4qhhA vs 4qhfA

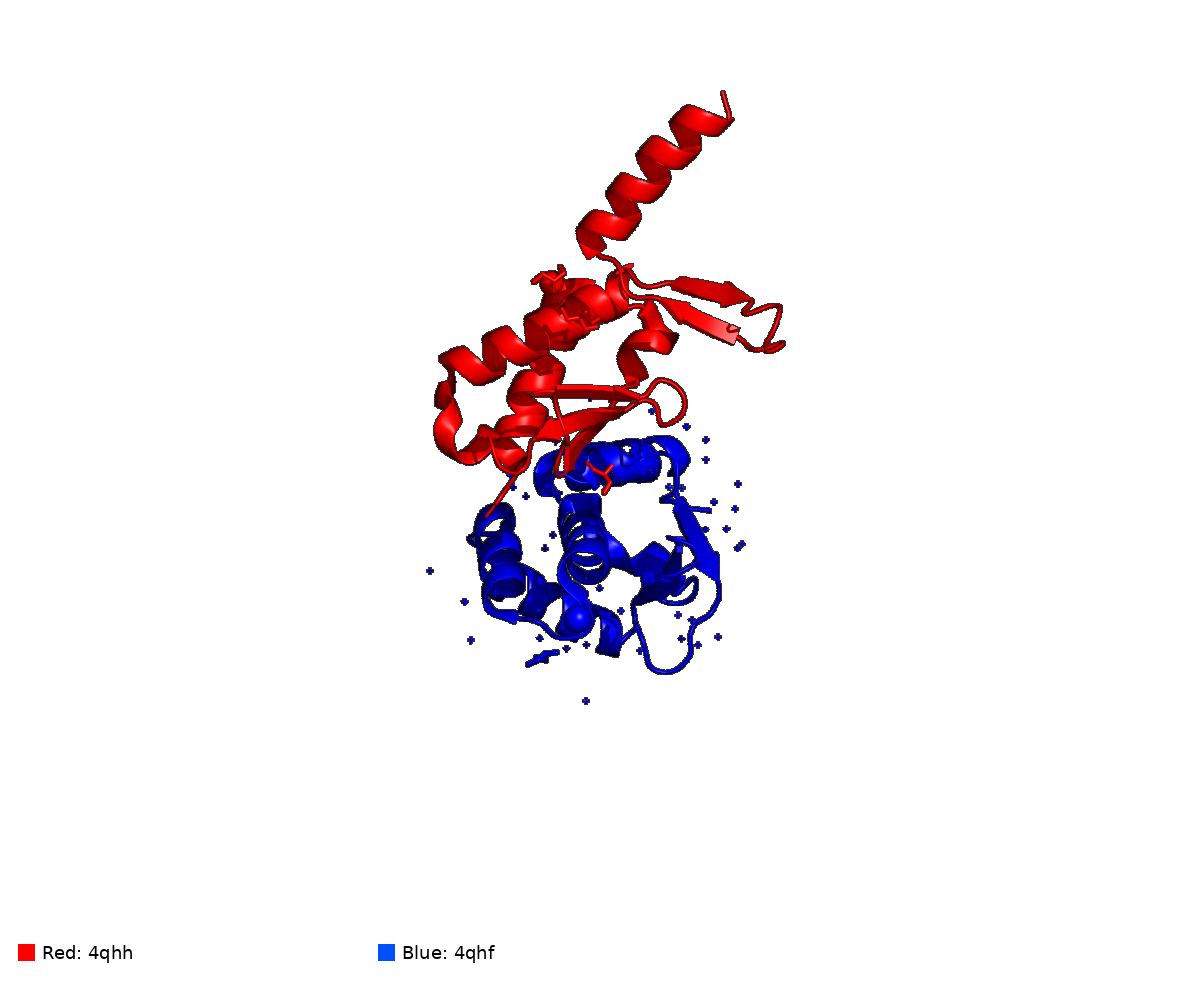

Figure 1: Two structures (Fold1 & Fold2)

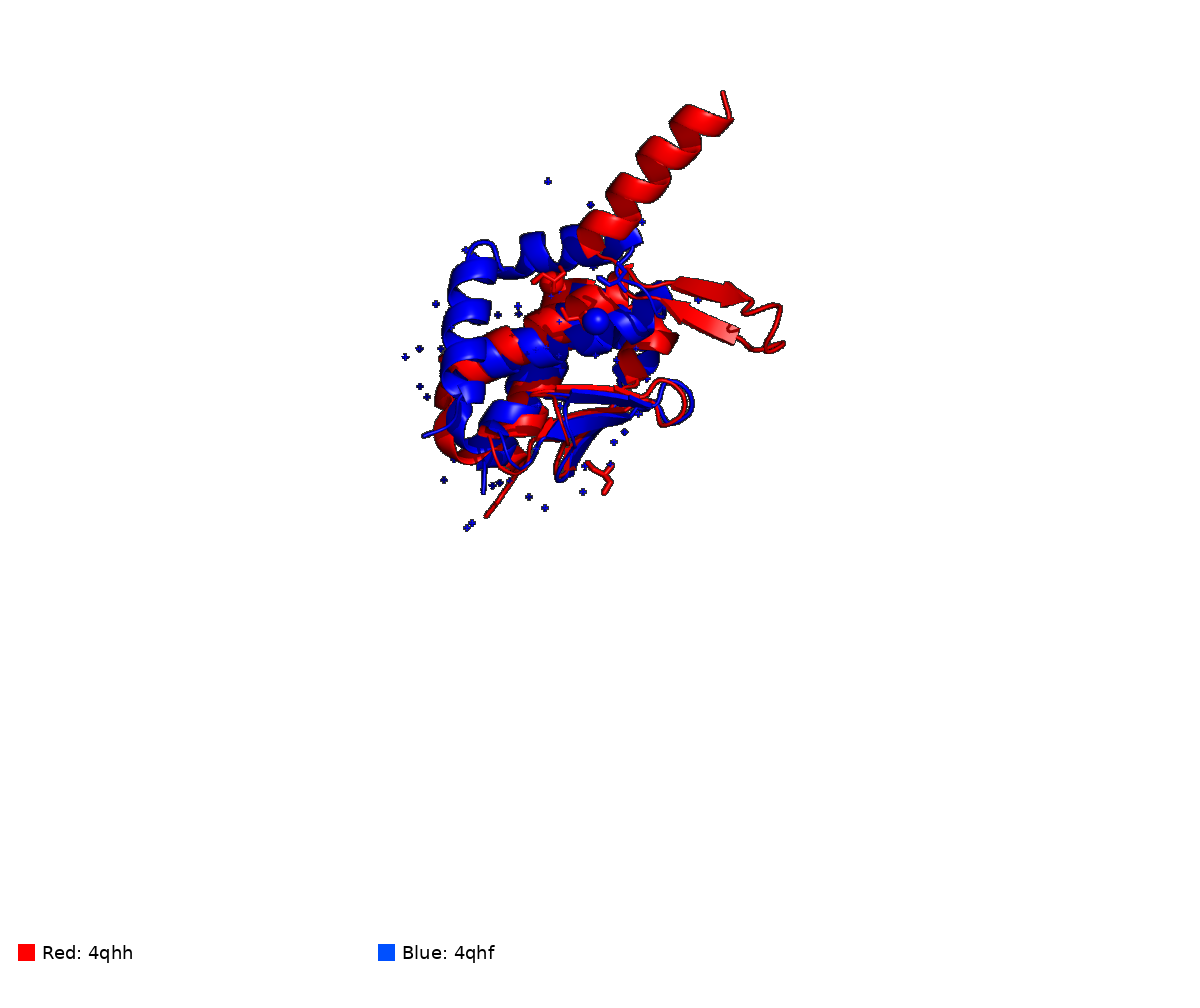

Figure 2: Two structures aligned

Missing: Fold1 vs best AF2
Missing: Fold2 vs best AF2
Missing: Fold1 vs best AF3
Missing: Fold2 vs best AF3
Missing: Fold1 vs best ESM2
Missing: Fold2 vs best ESM2
Missing: Fold1 vs best ESM3
Missing: Fold2 vs best ESM3
[missing] 4qhhA vs. 4qhfA (unaligned) — interactive
[missing] 4qhhA vs. 4qhfA (aligned) — interactive

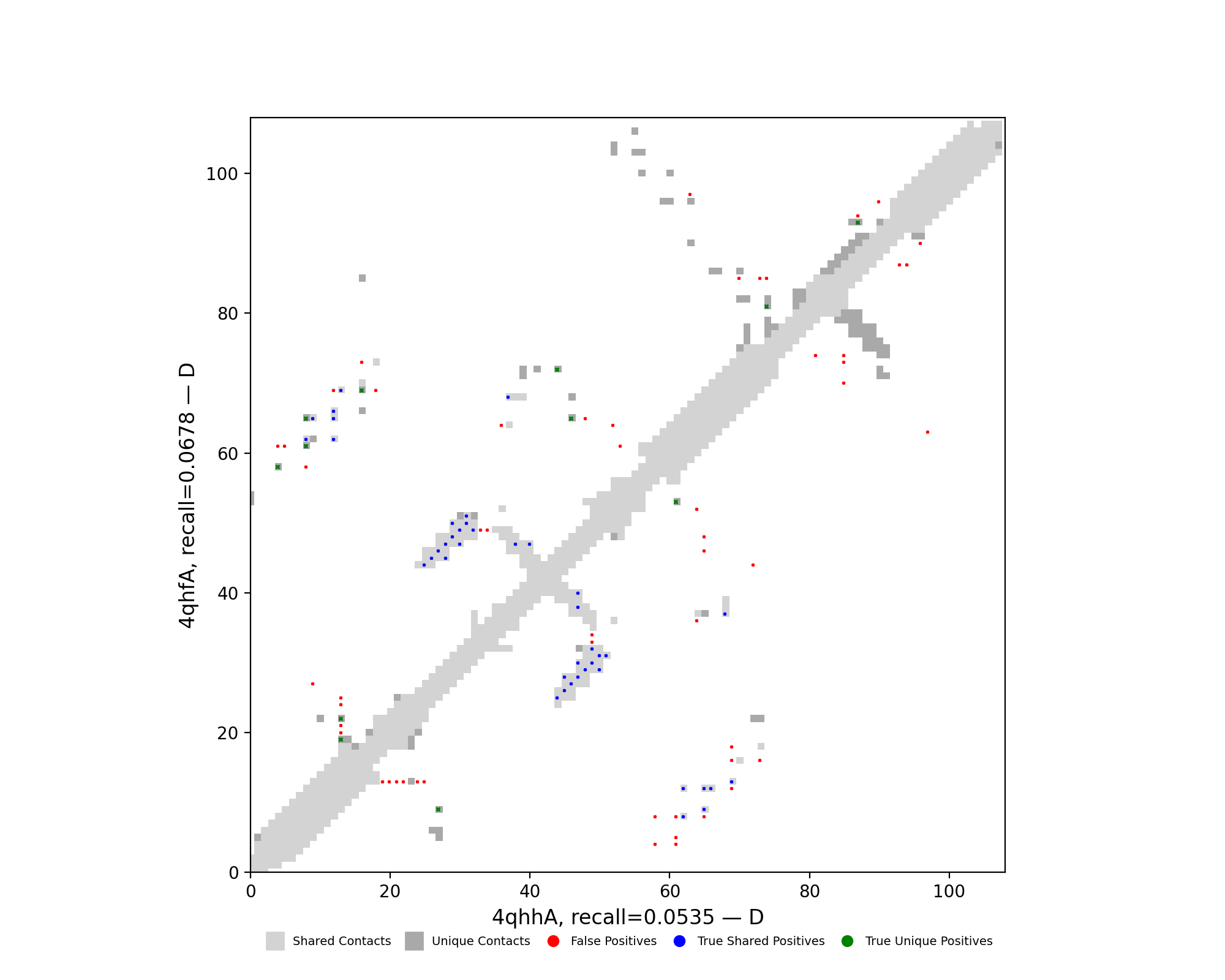

Figure 3: Deep-MSA contact map panel

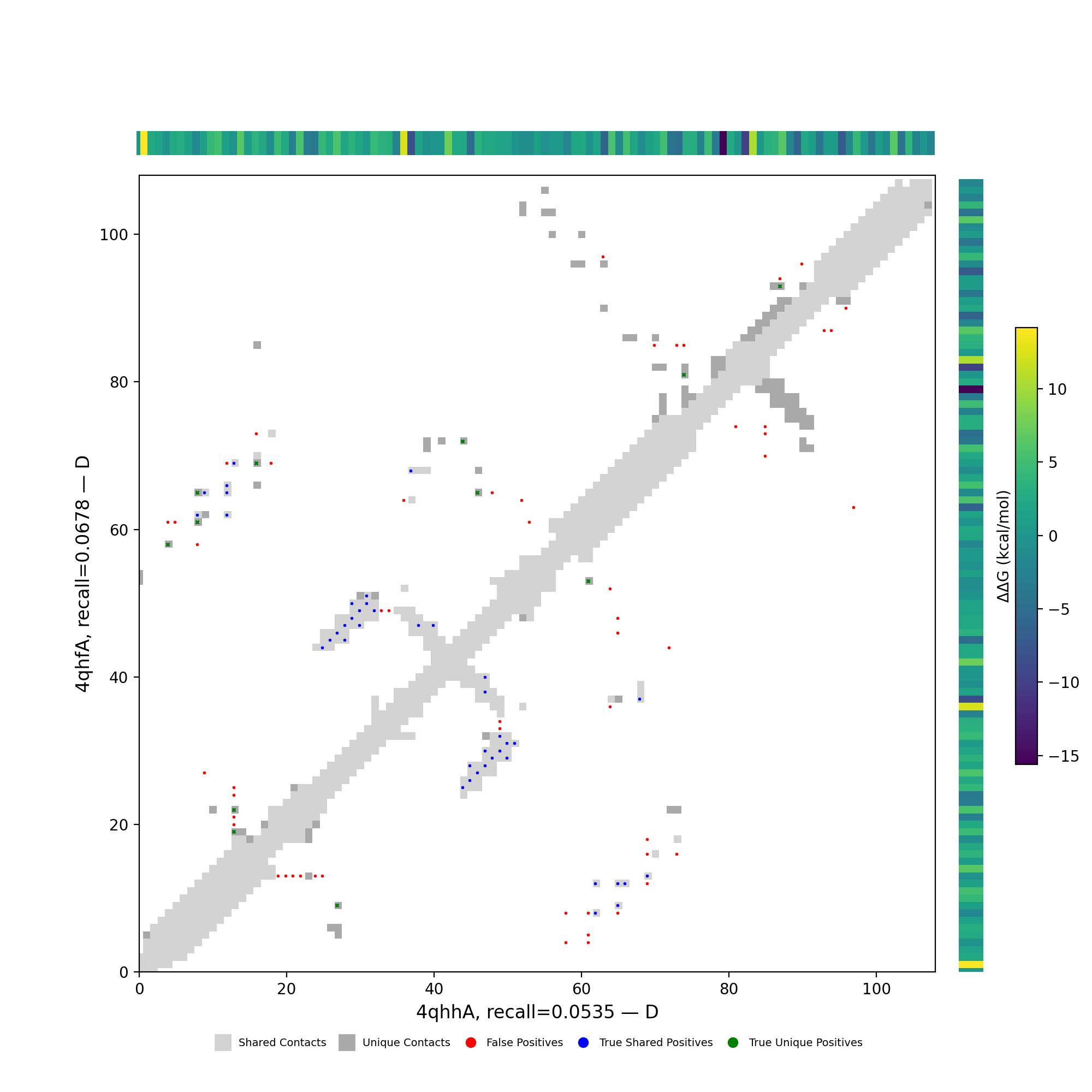

Figure 4: Best clusters contact map panel

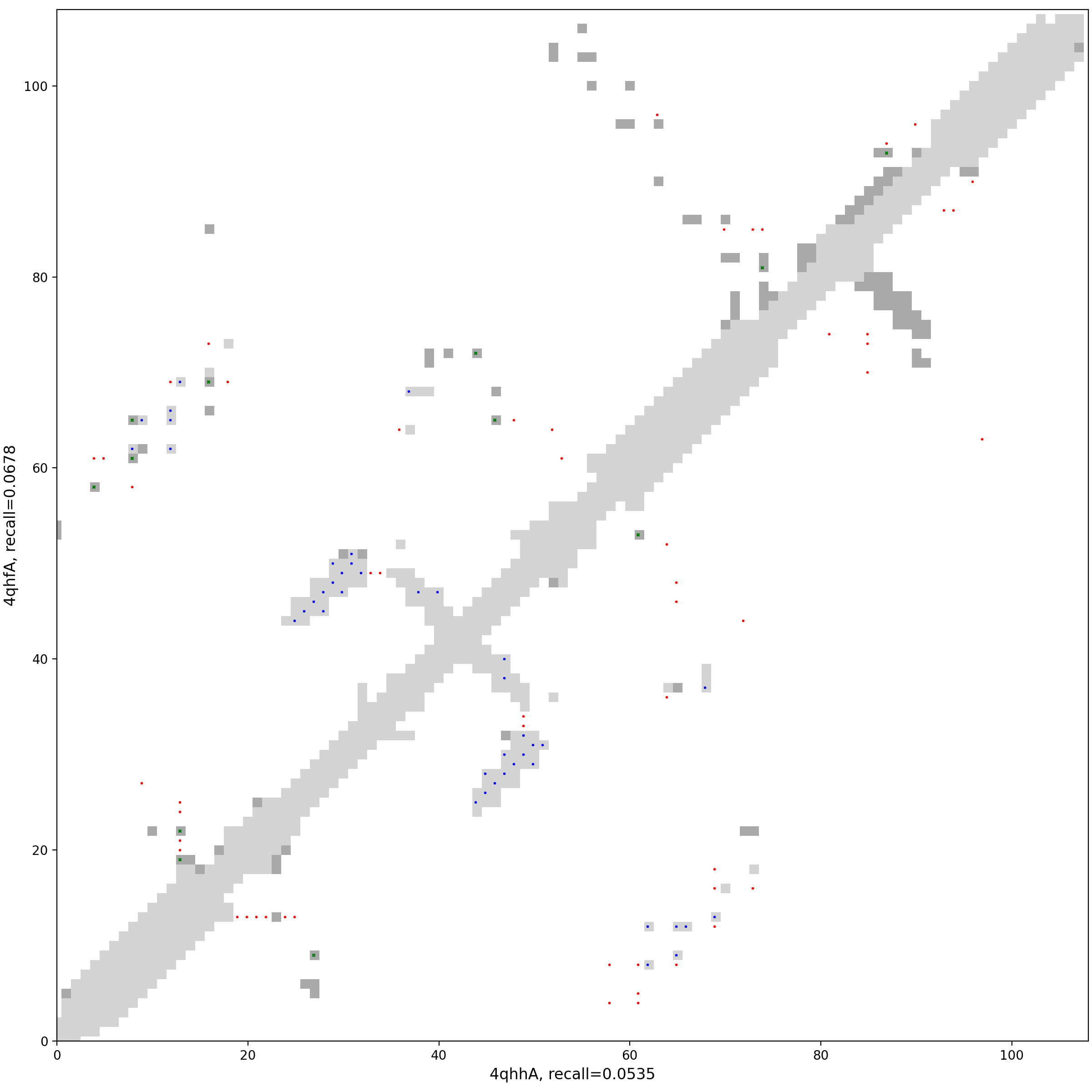

Figure 5: All clusters contact-map mosaic (small multiples).

Per-cluster contact maps

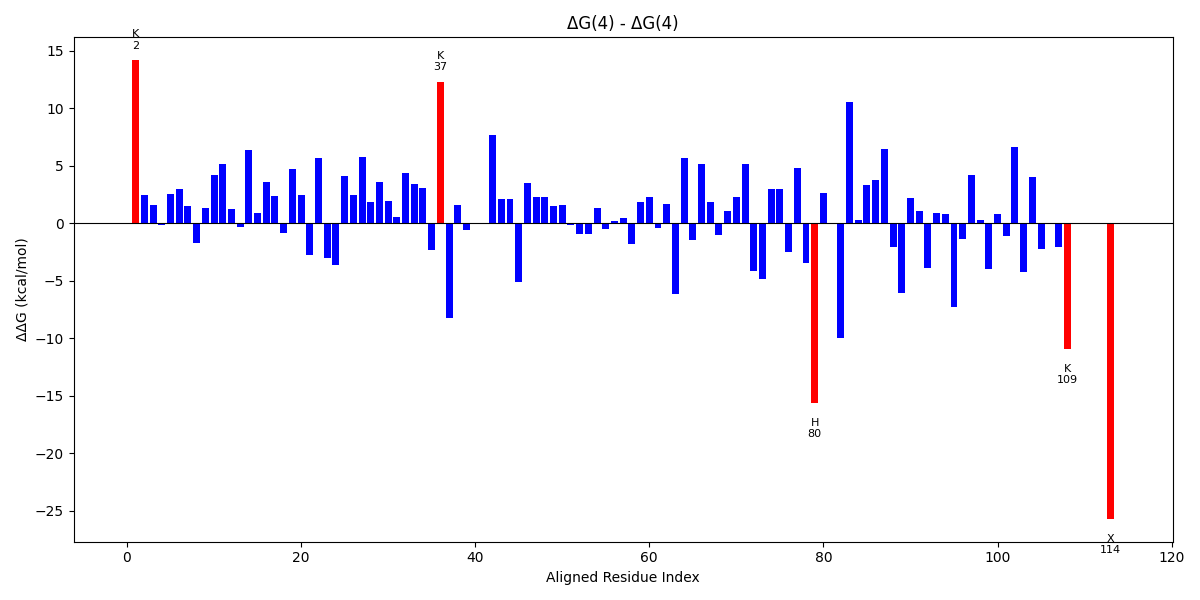

Figure 6: Aligned per-residue ΔΔG (seq alignment overlay).

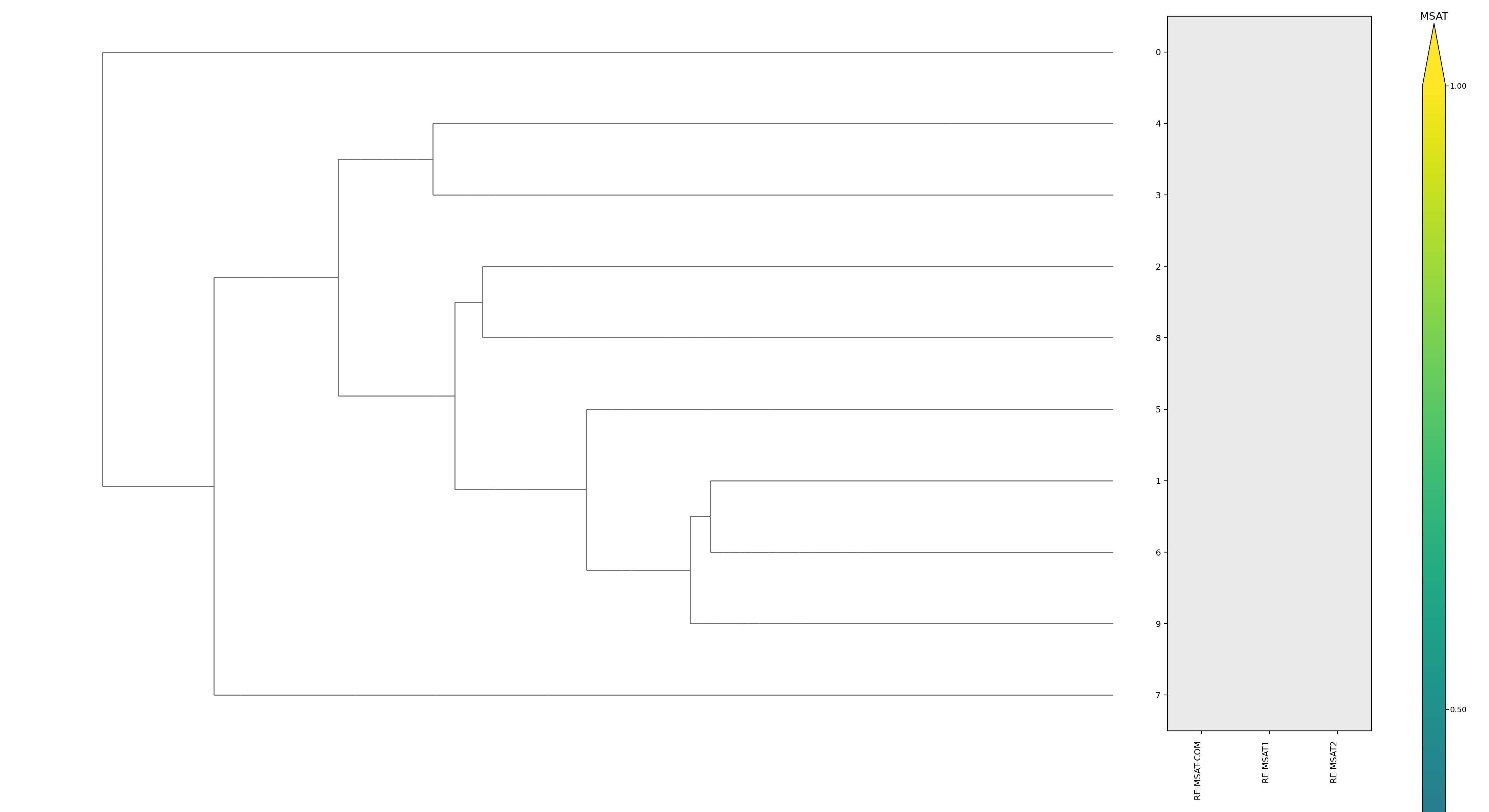

Figure 7: Phylogenetic tree with per-cluster heatmap.

Cluster metrics table

clusternneffAF2_TM1AF2_TM2AF3_TM1AF3_TM2RE-MSAT-COMRE-MSAT1RE-MSAT2ESM_SEQIDSESM_TM1_LISTESM_TM2_LIST
Deep--0.640.950.640.950.370.340.43---
000--0.650.950.640.950.390.340.52001; 001; 003; 003; 004; 004; 002; 006; 002; 0060.65; 0.65; 0.63; 0.63; 0.62; 0.61; 0.55; 0.54; 0.54; 0.540.94; 0.94; 0.85; 0.85; 0.62; 0.69; 0.69; 0.71; 0.70; 0.71
001--0.340.340.260.250.00.00.0007; 007; 002; 002; 010; 010; 001; 001; 004; 0040.36; 0.36; 0.36; 0.36; 0.35; 0.35; 0.33; 0.33; 0.32; 0.320.36; 0.36; 0.36; 0.36; 0.36; 0.36; 0.33; 0.33; 0.31; 0.31
002--0.260.490.270.490.00.00.0002; 002; 005; 005; 009; 009; 007; 007; 006; 0060.48; 0.48; 0.46; 0.46; 0.41; 0.41; 0.38; 0.38; 0.36; 0.360.48; 0.48; 0.47; 0.47; 0.40; 0.40; 0.39; 0.39; 0.37; 0.37
003--0.460.530.450.490.040.040.03006; 006; 005; 005; 001; 001; 008; 008; 002; 0020.57; 0.57; 0.57; 0.57; 0.54; 0.54; 0.50; 0.50; 0.46; 0.460.69; 0.69; 0.70; 0.70; 0.66; 0.66; 0.69; 0.69; 0.59; 0.59
004--0.420.470.380.420.00.00.0009; 009; 003; 004; 003; 004; 008; 008; 006; 0060.55; 0.55; 0.54; 0.54; 0.54; 0.54; 0.48; 0.48; 0.45; 0.450.64; 0.64; 0.66; 0.66; 0.66; 0.66; 0.62; 0.62; 0.55; 0.55
005--0.390.380.420.40.00.00.0001; 009; 009; 001; 006; 006; 007; 003; 007; 0030.42; 0.42; 0.42; 0.42; 0.38; 0.38; 0.35; 0.35; 0.35; 0.350.42; 0.41; 0.41; 0.42; 0.38; 0.38; 0.36; 0.32; 0.36; 0.32
006--0.260.240.20.190.00.00.0003; 006; 006; 003; 004; 004; 001; 002; 002; 0010.30; 0.30; 0.30; 0.30; 0.29; 0.29; 0.28; 0.28; 0.28; 0.280.28; 0.28; 0.28; 0.28; 0.28; 0.28; 0.28; 0.26; 0.26; 0.28
007--0.570.660.450.490.070.050.08008; 008; 001; 001; 006; 002; 002; 006; 004; 0040.64; 0.64; 0.63; 0.63; 0.59; 0.59; 0.59; 0.59; 0.58; 0.580.82; 0.82; 0.80; 0.80; 0.56; 0.58; 0.58; 0.57; 0.55; 0.55
008--0.260.260.240.260.00.00.0002; 003; 003; 002; 001; 001; 006; 006; 007; 0070.30; 0.30; 0.30; 0.30; 0.26; 0.26; 0.24; 0.24; 0.24; 0.230.29; 0.29; 0.29; 0.29; 0.25; 0.25; 0.22; 0.22; 0.20; 0.20
009--0.30.30.190.170.00.00.0008; 008; 007; 002; 002; 007; 001; 001; 009; 0090.35; 0.35; 0.32; 0.32; 0.32; 0.32; 0.31; 0.31; 0.30; 0.300.34; 0.34; 0.31; 0.32; 0.32; 0.31; 0.31; 0.31; 0.30; 0.30
