Analysis of pair 3j7vG_3j7wB

3j7vG vs 3j7wB

Figure 1: Two structures (Fold1 & Fold2)

Figure 2: Two structures aligned

Missing: Fold1 vs best AF2
Missing: Fold2 vs best AF2
Missing: Fold1 vs best AF3
Missing: Fold2 vs best AF3
Missing: Fold1 vs best ESM2
Missing: Fold2 vs best ESM2
Missing: Fold1 vs best ESM3
Missing: Fold2 vs best ESM3
[missing] 3j7vG vs. 3j7wB (unaligned) — interactive
[missing] 3j7vG vs. 3j7wB (aligned) — interactive

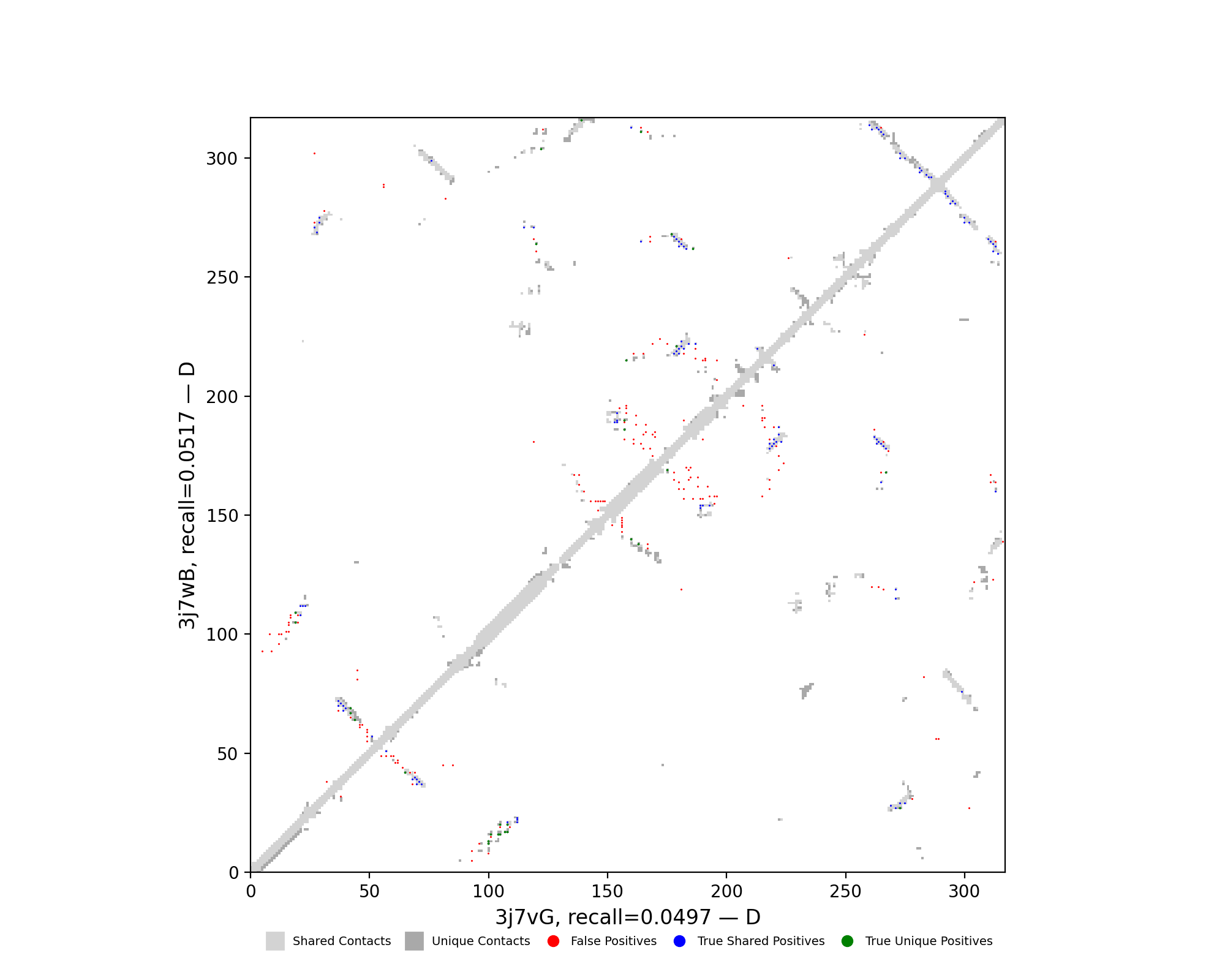

Figure 3: Deep-MSA contact map panel

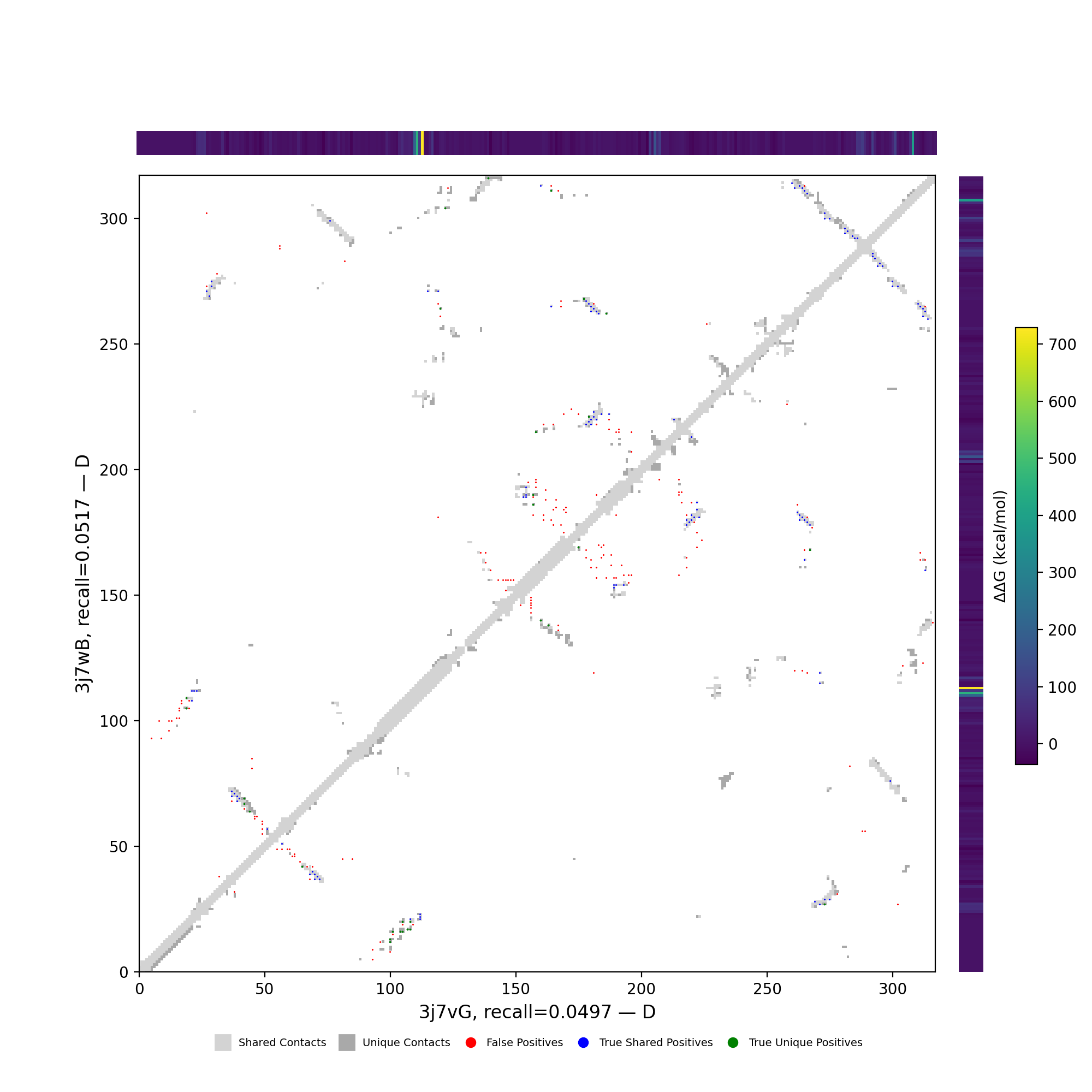

Figure 4: Best clusters contact map panel

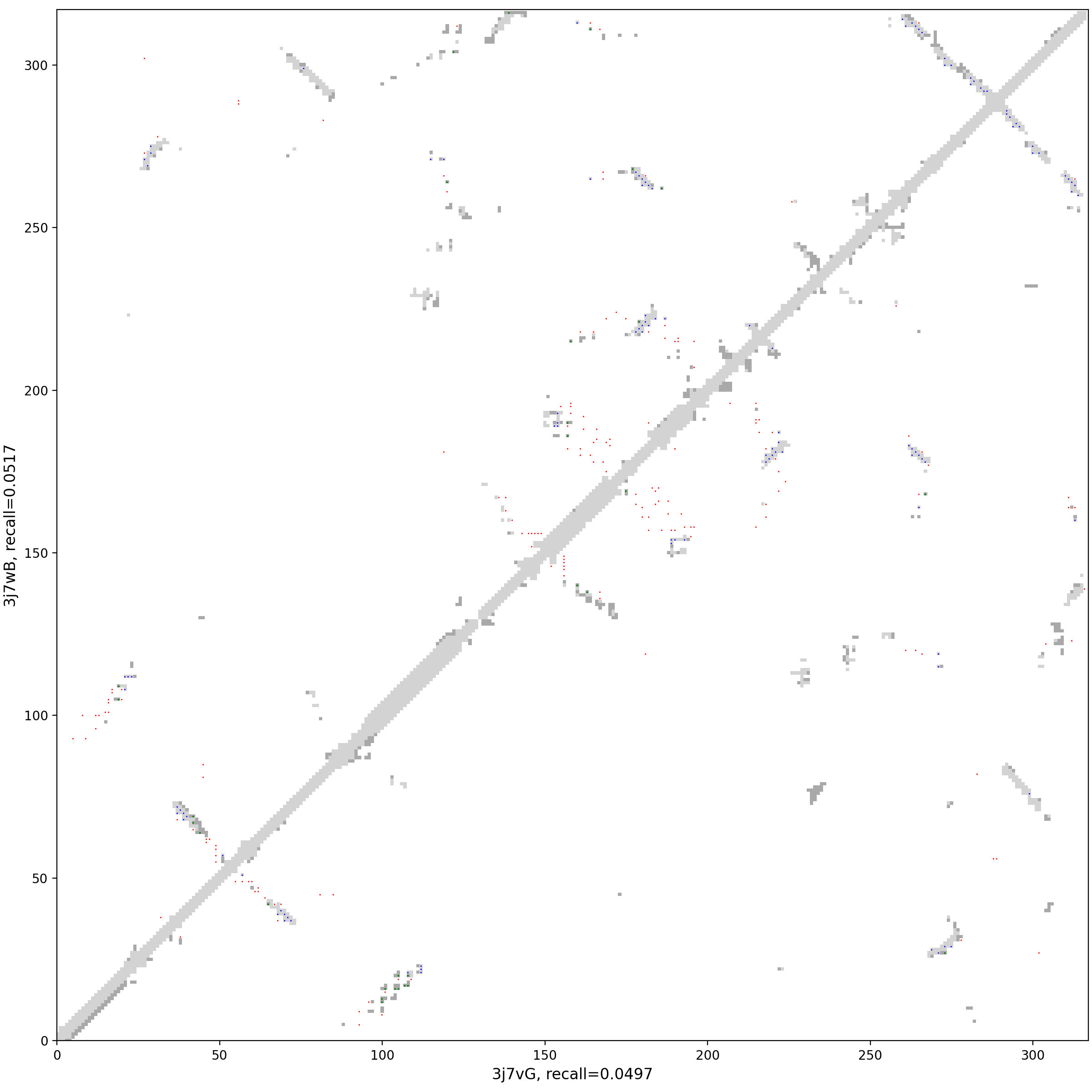

Figure 5: All clusters contact-map mosaic (small multiples).

Per-cluster contact maps

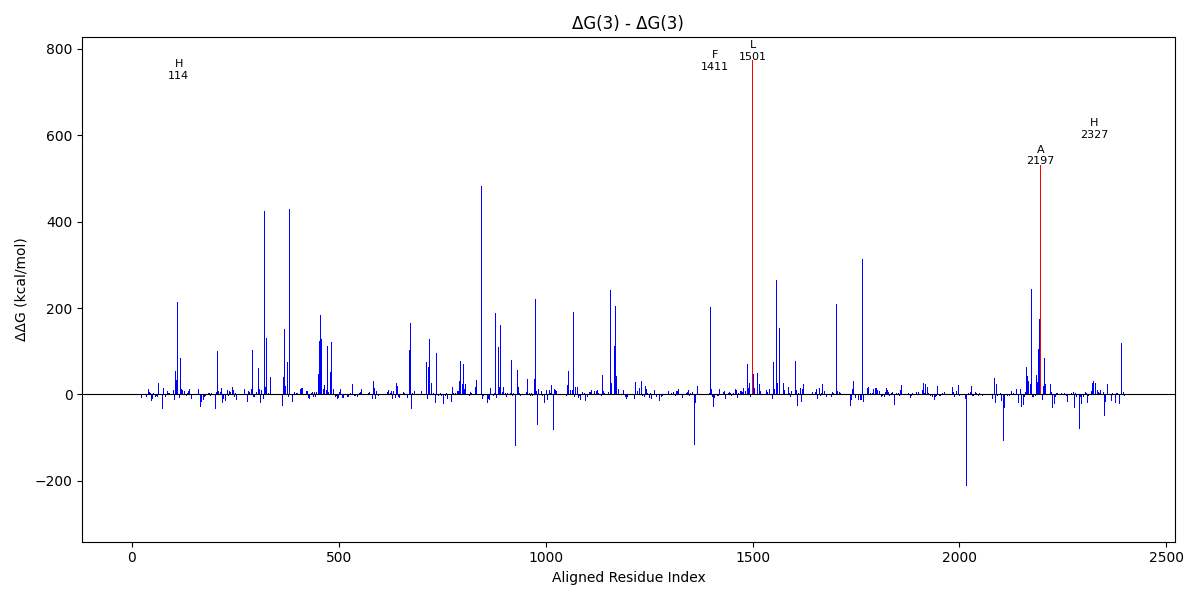

Figure 6: Aligned per-residue ΔΔG (seq alignment overlay).

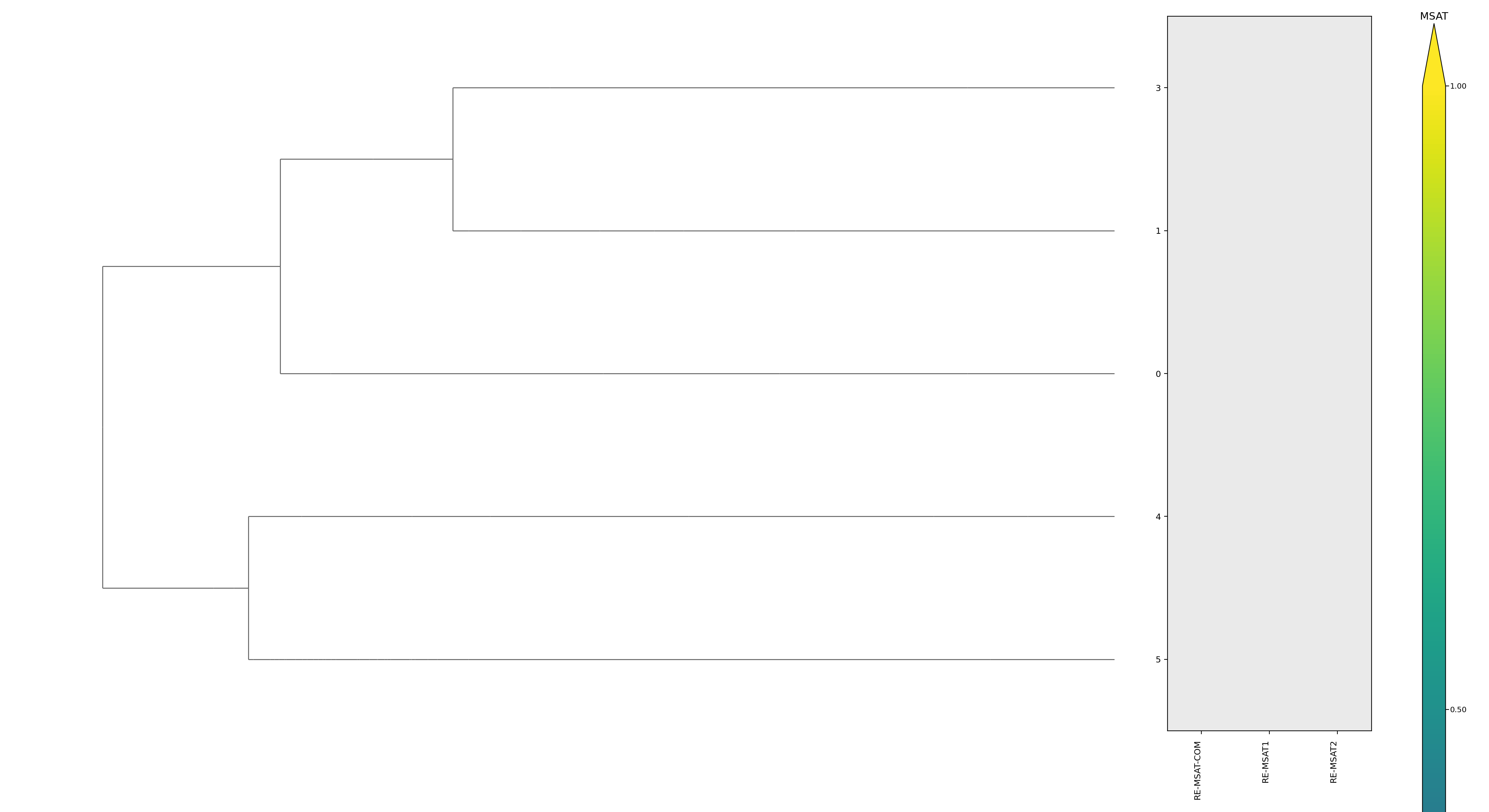

Figure 7: Phylogenetic tree with per-cluster heatmap.

Cluster metrics table

clusternneffAF2_TM1AF2_TM2AF3_TM1AF3_TM2RE-MSAT-COMRE-MSAT1RE-MSAT2ESM_SEQIDSESM_TM1_LISTESM_TM2_LIST
Deep--0.80.790.80.790.240.250.26---
000--0.670.610.670.620.020.030.02008; 008; 005; 005; 004; 004; 001; 003; 001; 0030.80; 0.80; 0.79; 0.79; 0.78; 0.78; 0.77; 0.77; 0.77; 0.770.68; 0.68; 0.70; 0.70; 0.68; 0.68; 0.68; 0.65; 0.68; 0.65
001--0.340.240.360.230.00.00.0004; 004; 006; 006; 007; 007; 008; 008; 001; 0010.47; 0.47; 0.44; 0.44; 0.40; 0.40; 0.37; 0.37; 0.36; 0.360.46; 0.46; 0.36; 0.36; 0.32; 0.32; 0.30; 0.30; 0.27; 0.27
002--0.570.510.580.50.050.050.03001; 001; 007; 007; 003; 003; 005; 004; 004; 0050.60; 0.60; 0.57; 0.57; 0.55; 0.55; 0.53; 0.53; 0.53; 0.530.52; 0.52; 0.45; 0.45; 0.46; 0.46; 0.51; 0.52; 0.52; 0.51
003--0.570.510.580.50.00.00.01001; 001; 007; 007; 003; 003; 005; 004; 004; 0050.60; 0.60; 0.57; 0.57; 0.55; 0.55; 0.53; 0.53; 0.53; 0.530.52; 0.52; 0.45; 0.45; 0.46; 0.46; 0.51; 0.52; 0.52; 0.51
004--0.810.70.810.710.00.00.0001; 001; 005; 005; 006; 009; 009; 006; 004; 0040.84; 0.84; 0.83; 0.83; 0.79; 0.79; 0.79; 0.79; 0.78; 0.780.75; 0.75; 0.70; 0.70; 0.68; 0.69; 0.69; 0.68; 0.68; 0.68
005--0.650.560.650.56---004; 009; 004; 006; 006; 009; 002; 002; 008; 0080.78; 0.78; 0.78; 0.78; 0.78; 0.78; 0.77; 0.77; 0.76; 0.760.65; 0.70; 0.65; 0.68; 0.68; 0.70; 0.68; 0.68; 0.68; 0.68
